Item Code: 6809405-00
Manufacturer KLUDI GmbH & Co. KG
Typ: KLUDI LOGO
DUAL SHOWER SYSTEM DN 15
Ref.: 6809405-00
thermostatic shower mixer DN 15
wall mounted
with ceramic shut-off valve 90 degree/ 90 degree
temperature handle with hotwater safety at 38 degreeC
shower outlet 1/2 inch
protected against back flow
with integrated back flow preventer
S-unions G 1/2 x 3/4
with dirt-catcher sieve
With fixing material
height-adjustable hand shower holder
hand shower 1 S
1 spray pattern
Volumen
with cleaning system
sieve seal
Shower hose
plastic coated
with conical nuts
G 1/2 x G 1/2 x 1600 mm
head shower 1 S
200 mm x 200 mm
1 spray pattern
with cleaning system
connection 1/2 inch
with ball joint
sieve seal
Product picture

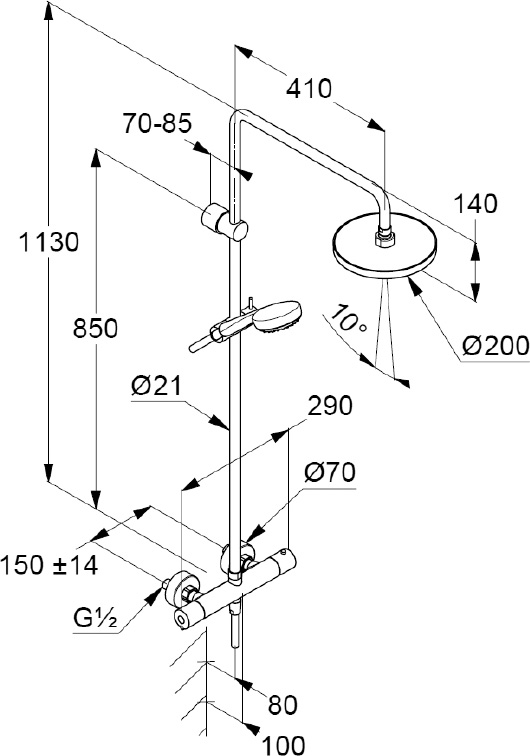

Dimensional drawing

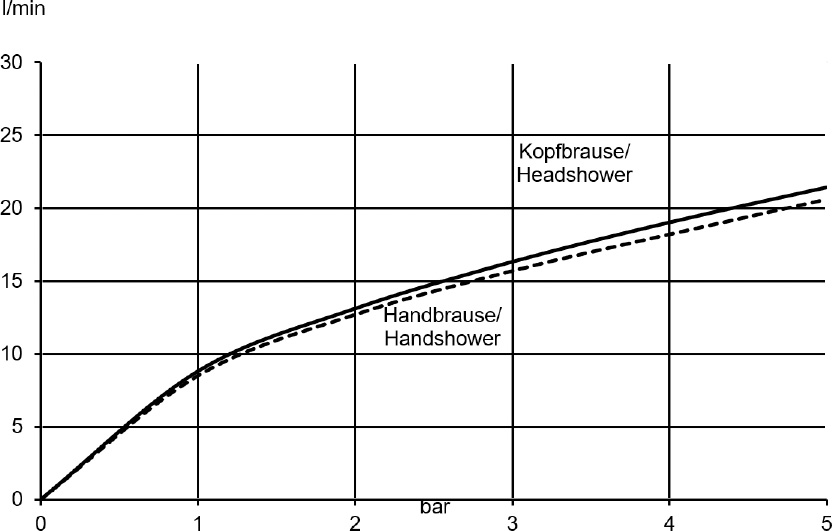

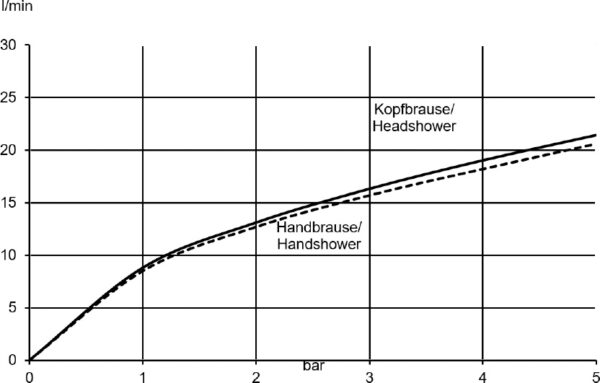

Flow rate diagram
